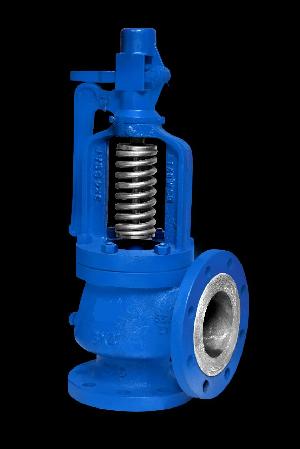

Safety Valve

Jet Flow Safety Valve represent the most advance technology in value designed for use in intermediate power boiler and organic fluid vaporizer service. Built in conformance to section I of the ASME boiler and pressure vessel code, all capacities am certified by the national board of boiler and pressure vessel inspector at 5% over pressure.

Jet Flow Designed Safety Valve with Full Nozzle & hardened disc to minimize maintenance and increase seat life Open bonnet & Close bonnet both design have maximum set pressure 75 bar in Safety Valves.

Technical Details :

• Size Range - 15 mm TO 200 mm
• Moc - Cast steel,CF8,CF8M,GM
• End Connection - Screwed End, Flanged End, Butt weld
• Pressure Rating - 150 class, 300 class
• Trims - SS 304,SS 316

• Design  :

  • Angle Type(Lever operated / without lever)
  • Pop Type (Lever operated / without lever)
  • Open Discharge Type (Lever operated / without lever)
  • Angle type CP

• Design Standard - API 526 ,520 & IBR
• Testing Standard - API 527
• Flange drilling - ANSI B16.5
• Leakage test - API 527
• Suitable Application - Steam, Gas, Air, Water, Oil

While Enquiry Please Specify :

• Material of Construction.
• Set pressure in psig or Kg/cm2 (g).
• Maximum inlet temperature.
• Allowable over-pressure.
• Service-Specify either the media to be handled or the following physical properties or both.
• Liquids-Specific gravity (Water = 1)
• Gases-Specific gravity (Air=1)
• Vapors-Molecular weight (mixture of vapors. The average molecular weight)
• Back pressure, if any.
• Required capacity.
• Type of End-connections.
• Preferred inlet size.
